Product features:
High-precision acquisition and control
Stable and reliable software architecture and rich system functions
Pure Chinese localization
No supply chain risk
Highly integrated
Application field:

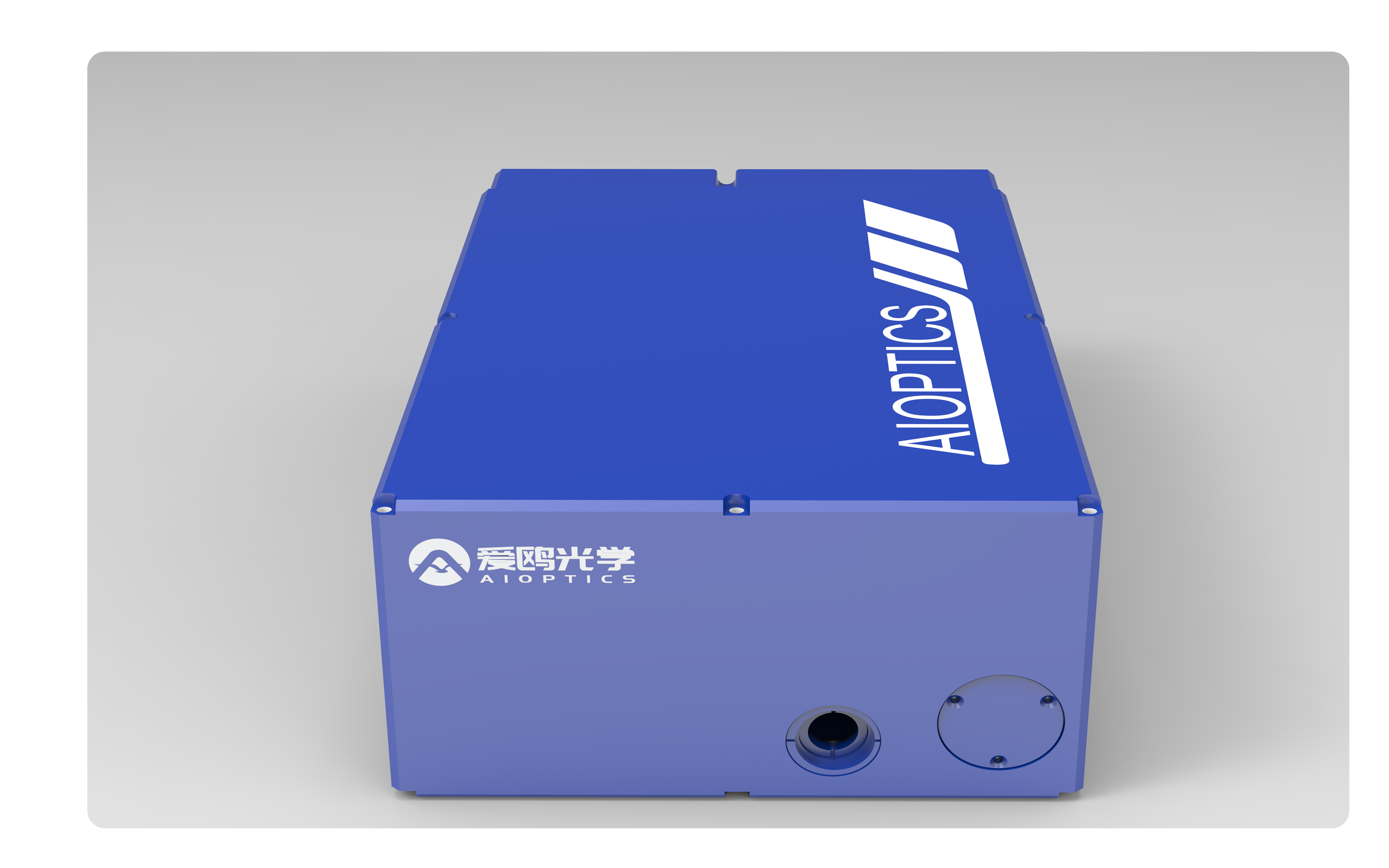

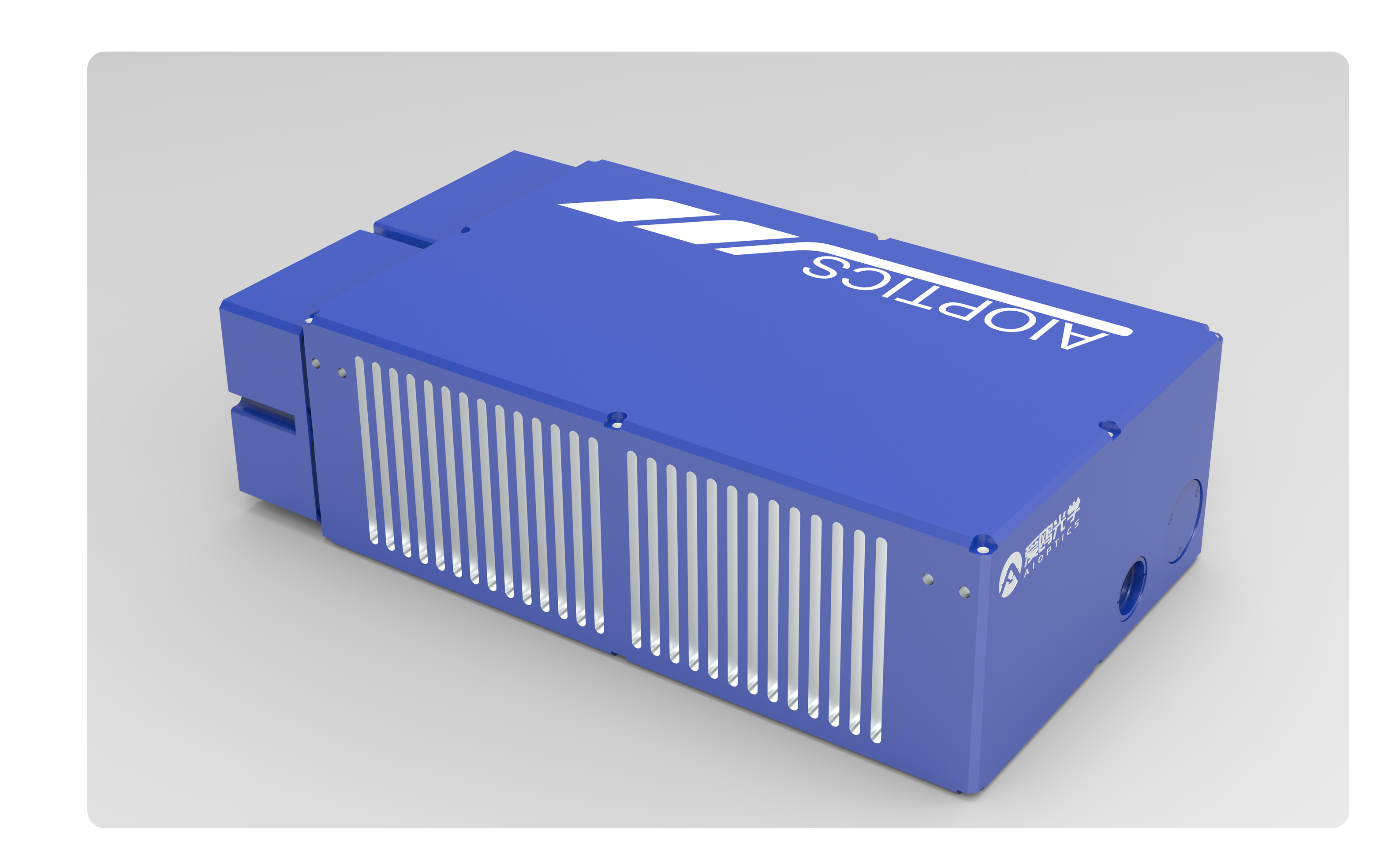

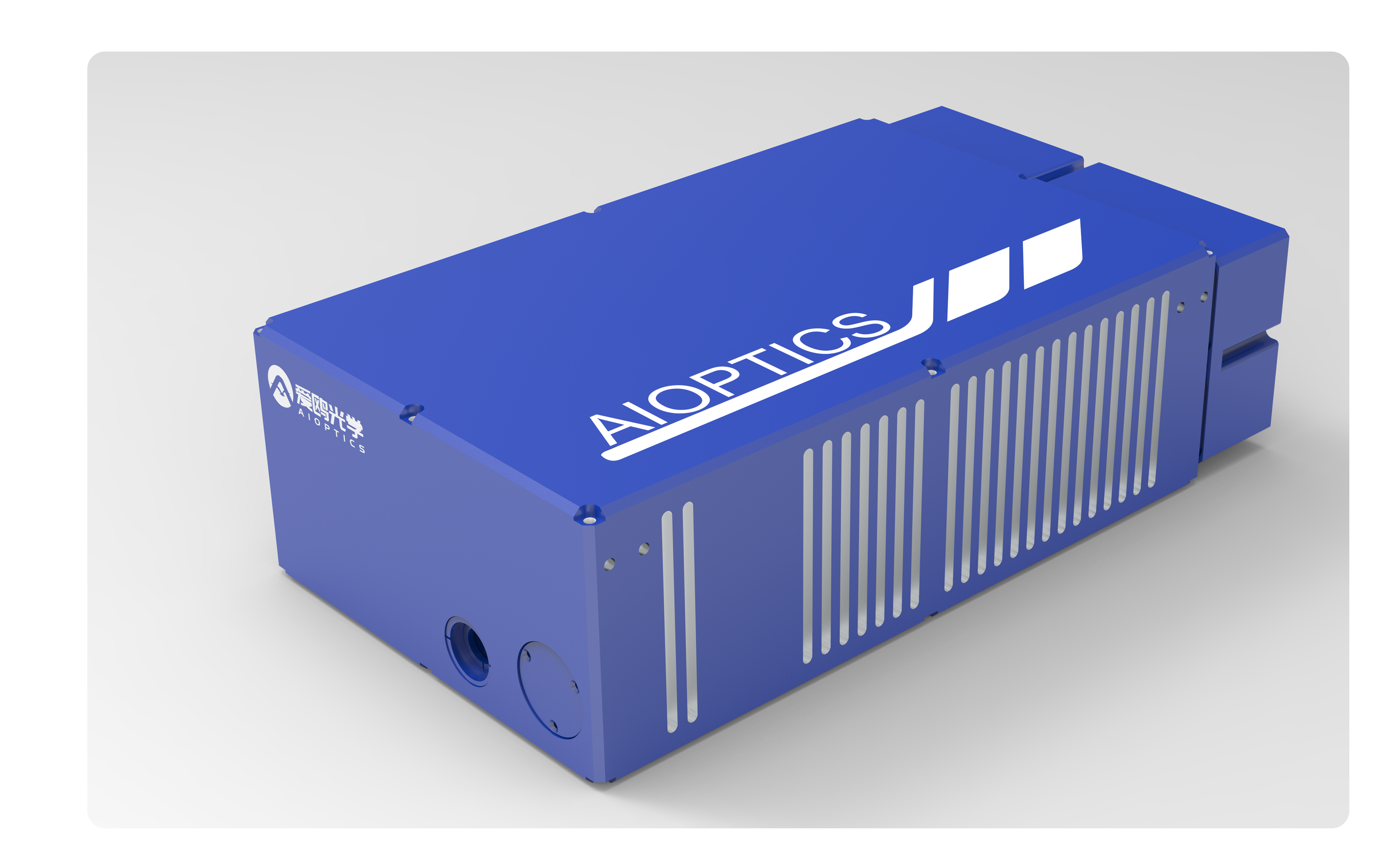

4 coherent synthesis control module
The FPGA is used to monitor the data of coherent synthetic light in real time, and after data analysis, the required stable coherent synthetic light is adjusted through the FPGA output DAC voltage-controlled phase modulator and electronically controlled polarization controller. The module includes the motherboard MCB, phase modulator, delay line and electronically controlled polarization controller, and uses RS485 interface to communicate with the user.
Work metrics
Typical parameters
Operating wavelength
1064 nm
Number of channels
4
Insertion loss
4.5dB
Delay range
0~330 ps
Tuning precision
0.3um/ 1fs
Polarization extinction ratio
13dB
Polarization tuning response time
50 μs
Pulse synthesis efficiency(>10w)
90%
Phase control residuals(≥4 通道)
λ/20 rms
The system is out of lock until the recovery time
200 ms
