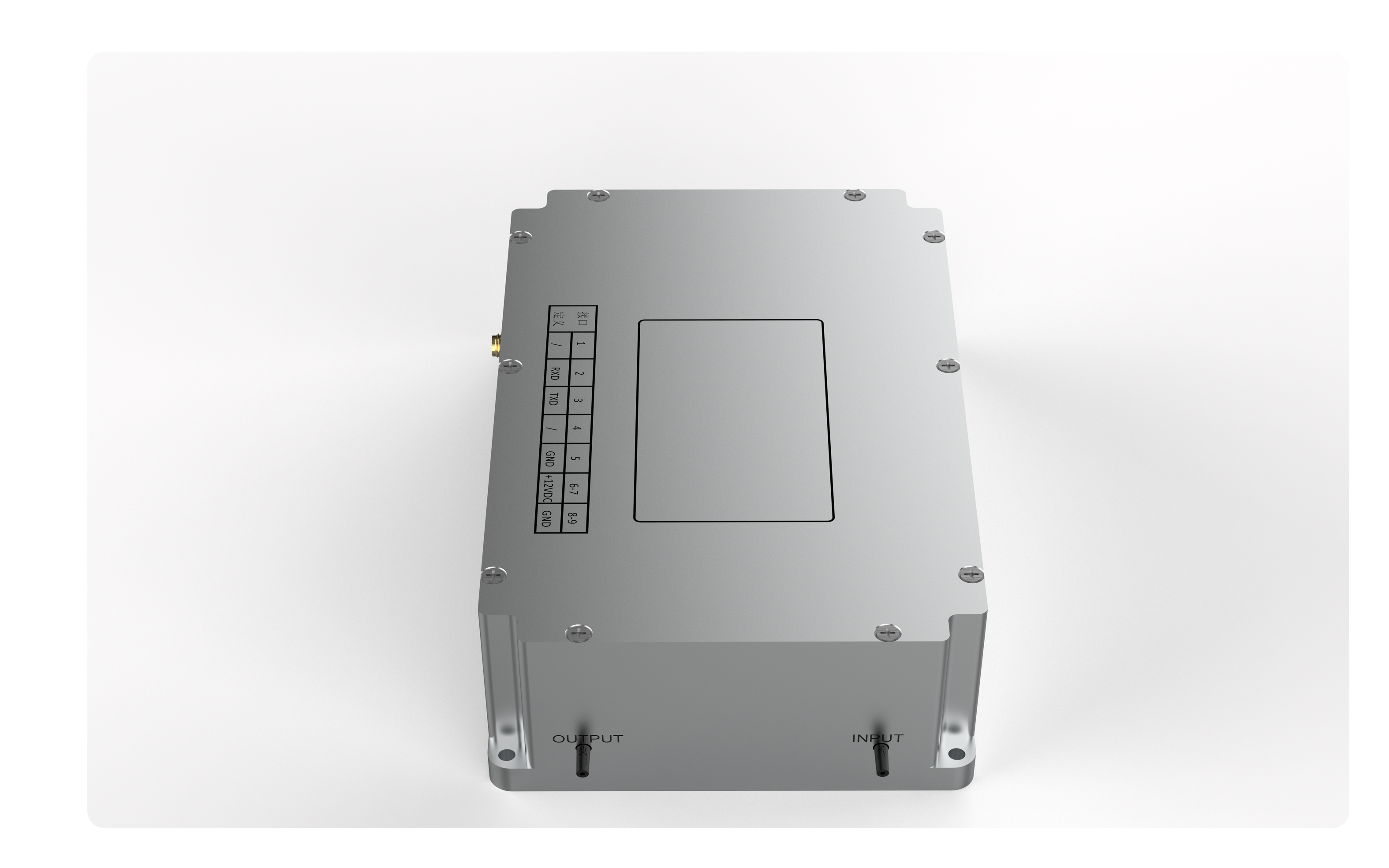

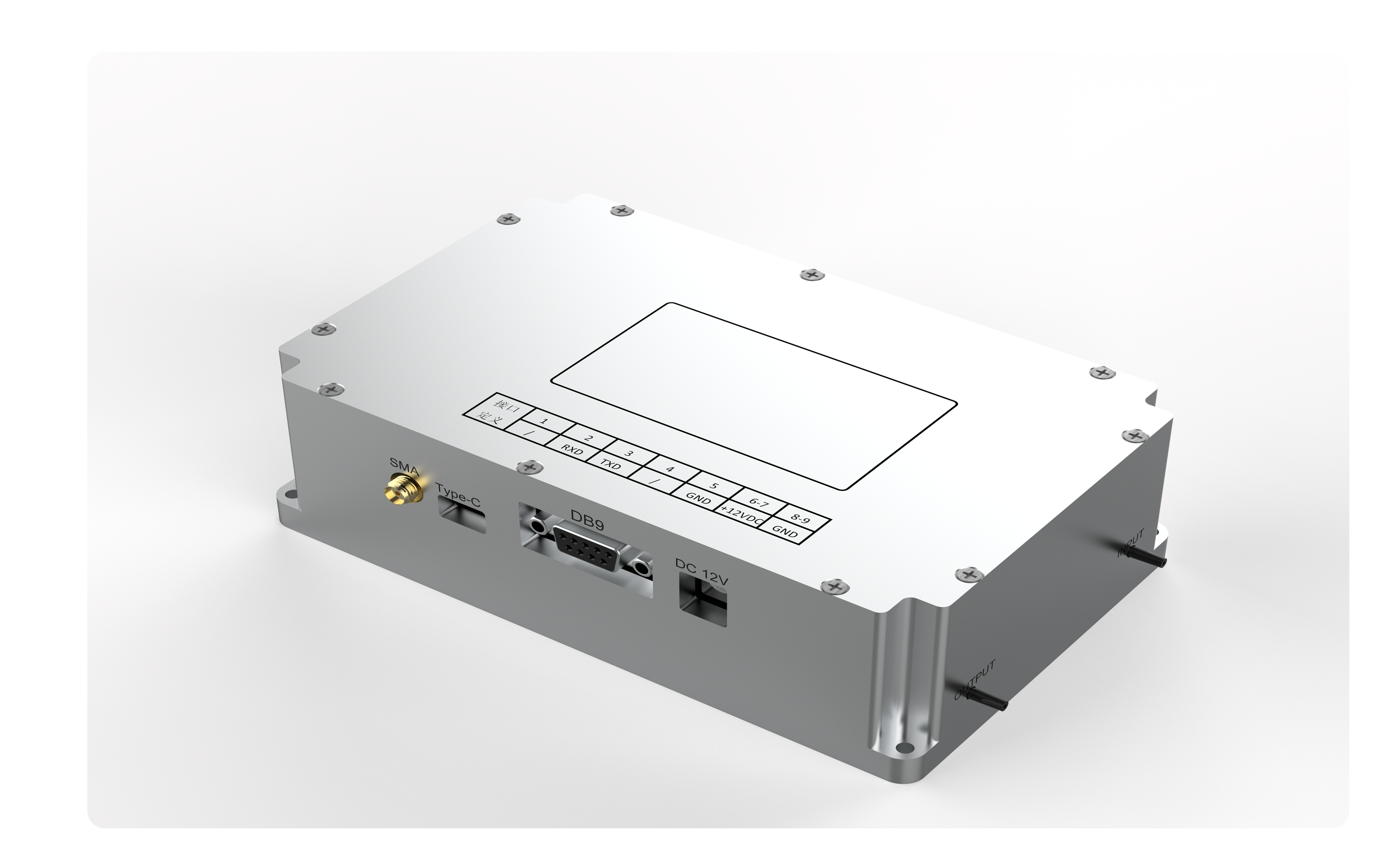

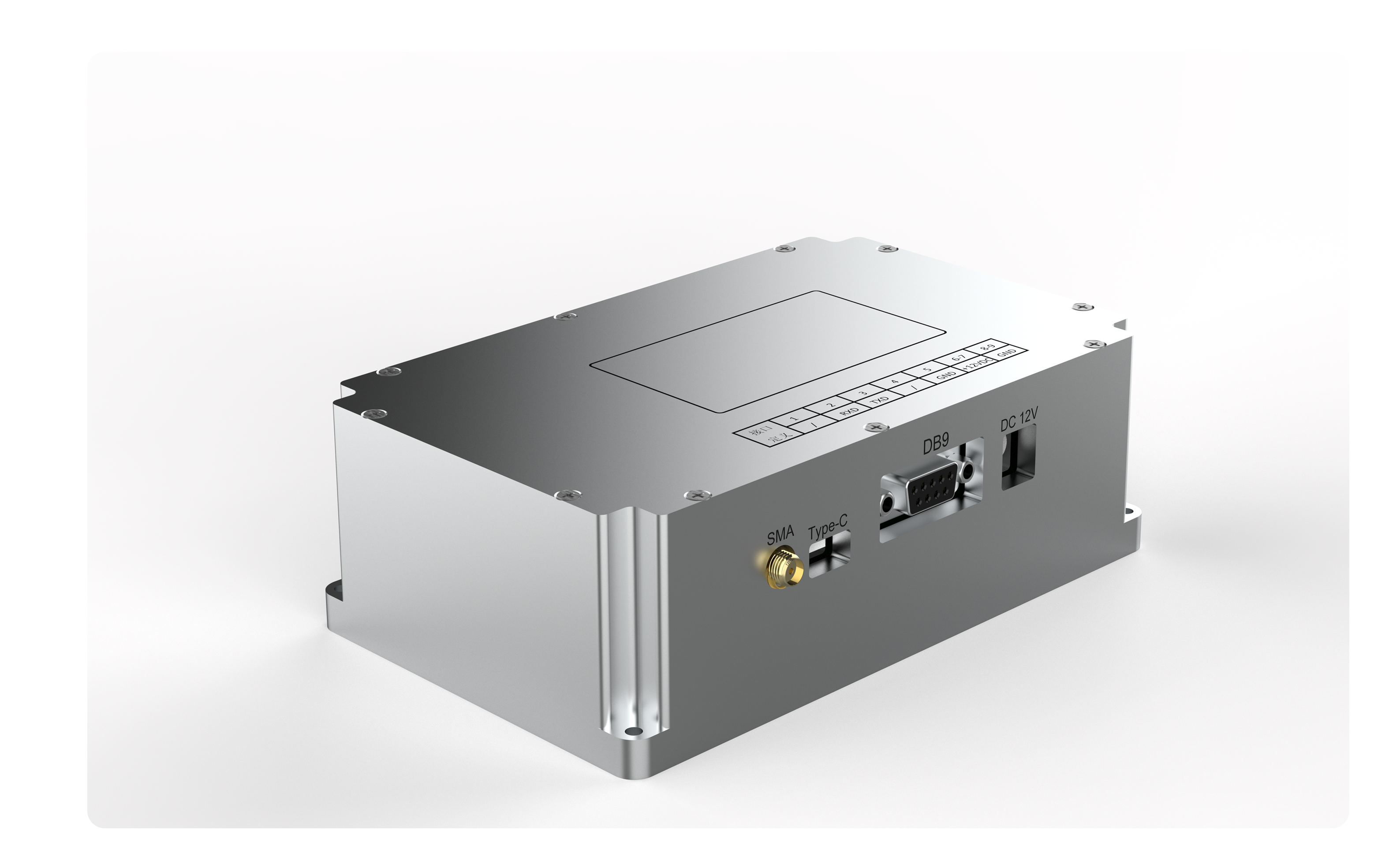

Intelligent data acquisition card

AIOPTICS has launched the high-performance intelligent data acquisition card iADQ series, providing high sampling rate and high-precision ADC. The ADC sampling rate can be configured through instructions, supporting high-speed real-time signal acquisition. The iADQ series supports external triggering and the triggering delay is adjustable. In addition, the iADQ series is based on FPGA and supports high parallelism real-time DSP, which can continuously process collected signals without losing frames. DSP supports functions such as FFT, Hilbert transform, phase solving and unwrapping, Kalman filtering, and digital filtering.

Request a quotation Online consultation 021-54163809

• SPECIFICATIONS

  iADQ-DC-1.3GSa/s-9bit

• Number of channels

  2

• Coupling mode

  Direct-current

• Impedance

  50ohm

• Input Interface

  SMA

• Input Voltage

  ±3V

• Bandwidth

  ≤500MHz

• Sampling rate

  ≤1.3GSa/s

• Resolution ratio

  9bits

• Sample rate configurable

  100/250/500/1000/1300MSa/s

• Maximum sampling points per channel

  2Mpoints

• Internal trigger output

  3.3V

• External trigger input

  3.3V

• External trigger sampling delay

  Support

• FFT

  Support

• Digital filtering

  Support

• Phase solution

  Support

• Phase unwrapping

  Support

• FPGA

  Xilinx Zynq Series（Built in Cortex-A9 ARM processor）

• DDR

  1GB

• Command control

  RS485(Configure sampling rate, algorithm parameters, and sampling trigger delay）

• Power supply

  12V

• Consumption

  ≤36W
