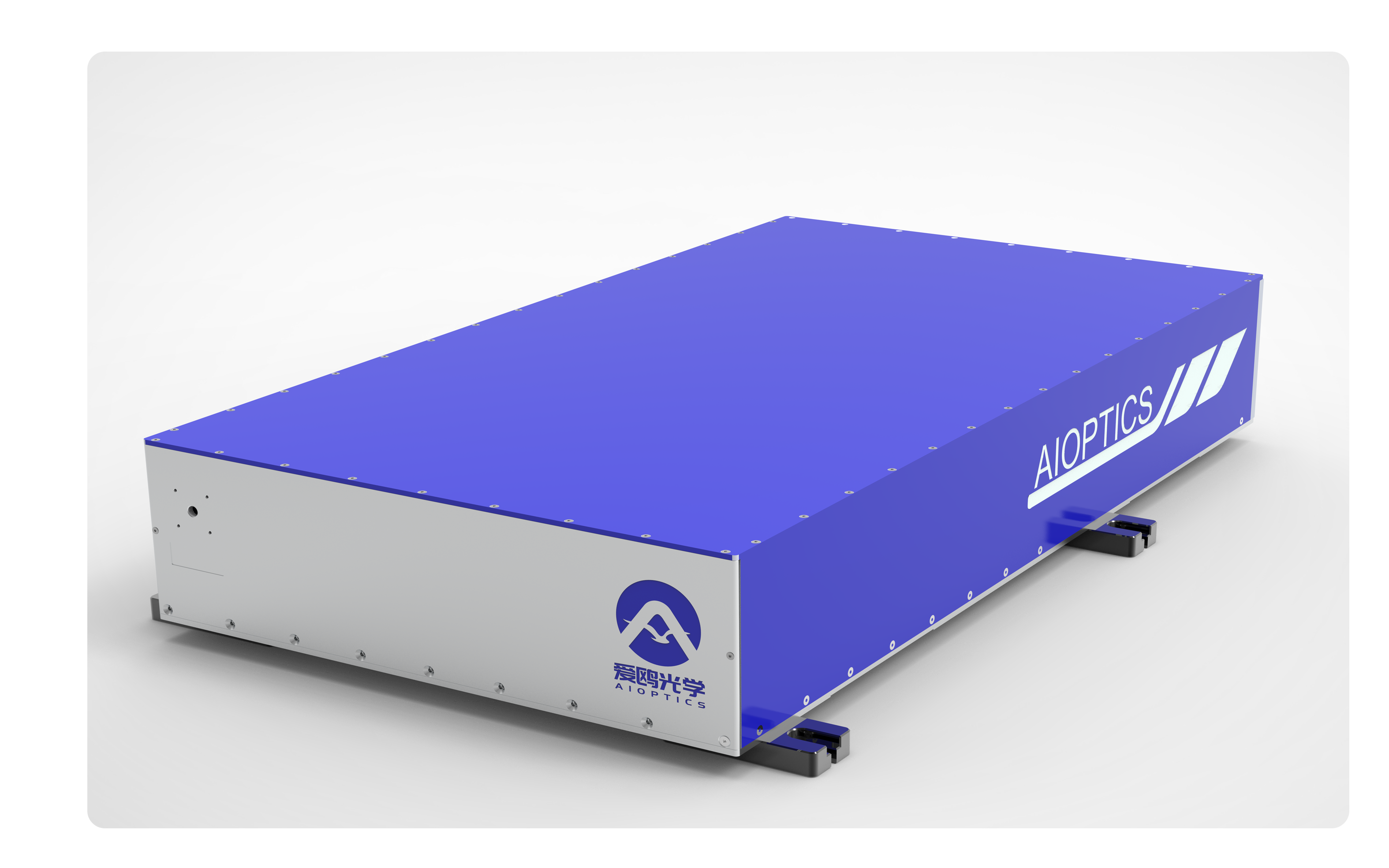

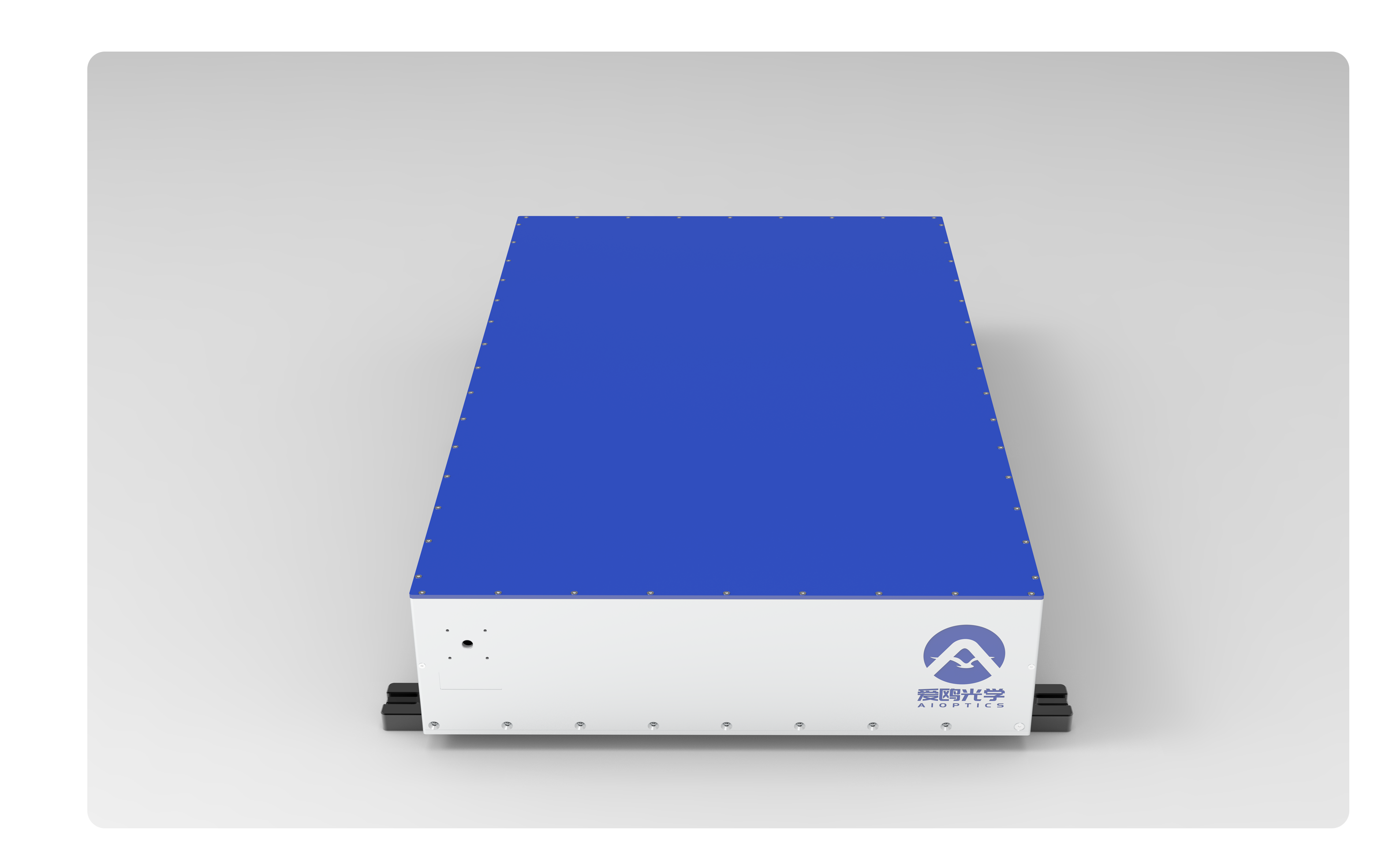

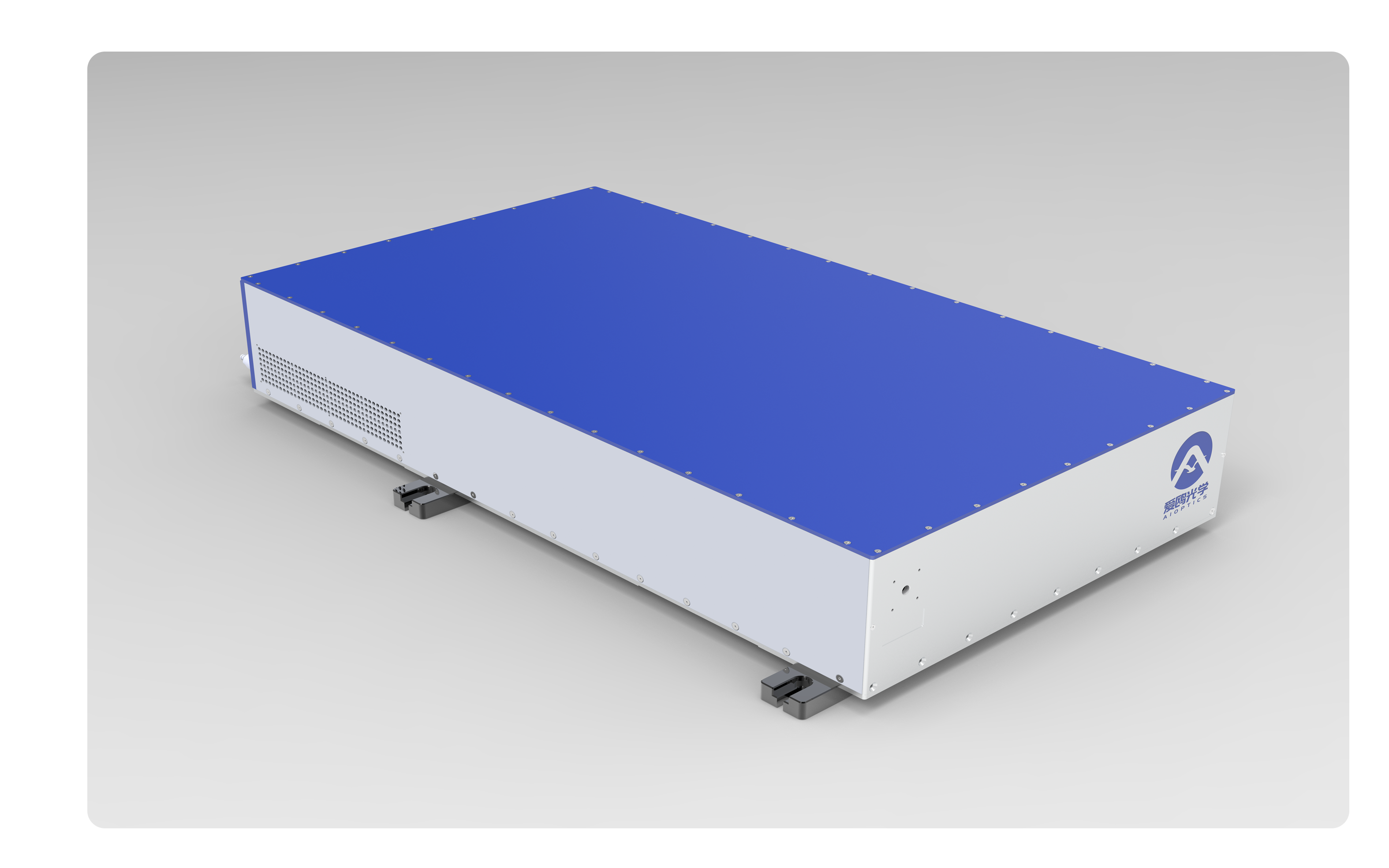

Low-noise femtosecond lasers

The low-noise femtosecond laser is a high-performance laser device that has won a wide range of applications due to its excellent performance and stability. The center wavelength of the laser is 1030nm, the average power is 5W, the pulse energy is more than 200nJ, the pulse width is less than 200fs, the peak power is about 1000KW, and the repetition rate can be adjusted between 6~80MHz. In terms of beam quality, this laser performs excellently, with a beam quality of less than 1.2 M2, a spot divergence angle of less than 1mrad, a spot roundness of more than 0.9, and a beam diameter of 4mm. In addition, the laser has excellent pulse width stability and power stability of less than 5% and less than 1%, respectively, with a duration of 12 hours. It is worth mentioning that the unique heat dissipation design of this laser ensures that the noise level is kept low during operation, providing you with a quiet experience. The operating temperature range is 18-30 degrees Celsius and the operating voltage is 220V. This low-noise femtosecond laser has a wide range of application prospects in precision manufacturing, biomedicine, scientific research and other fields.

Request a quotation Online consultation 021-54163809

• SPECIFICATIONS

  iSolver

• Center wavelength

  1030nm

• Average power

  5W

• Pulse energy

  >200nJ

• Pulse width

  <=200fs

• Peak power

  ~100kW

• Repetitive frequency

  6~80MHz

• Beam Quality

  <1.2

• Spot divergence angle

  <1 mrad

• Spot roundness

  >0.9

• Beam Diameter

  4mm

• Polarization state

  线偏振

• Pulse width stability

  <5%

• Power stability

  <1%

• Working temperature range

  18-30℃

• Working voltage

  220V

• Heat dissipation method

  风冷或水冷

• ISolver Intelligent Control Platform Download
