Product Features:
Intelligent pulse recognition and real-time control
Maximum single pulse energy up to 100 μJ
Adjustable pulse width (200 fs ~ 10 ps) to meet diverse processing requirements
Supports multiple pulse control modes including Burst/PSO/POD
Stable and reliable integrated structural design
Application Fields:
Semiconductor wafer processing
New energy battery material processing
Optical waveguide chip processing
Femtosecond grating inscription
Polymer material processing and treatment

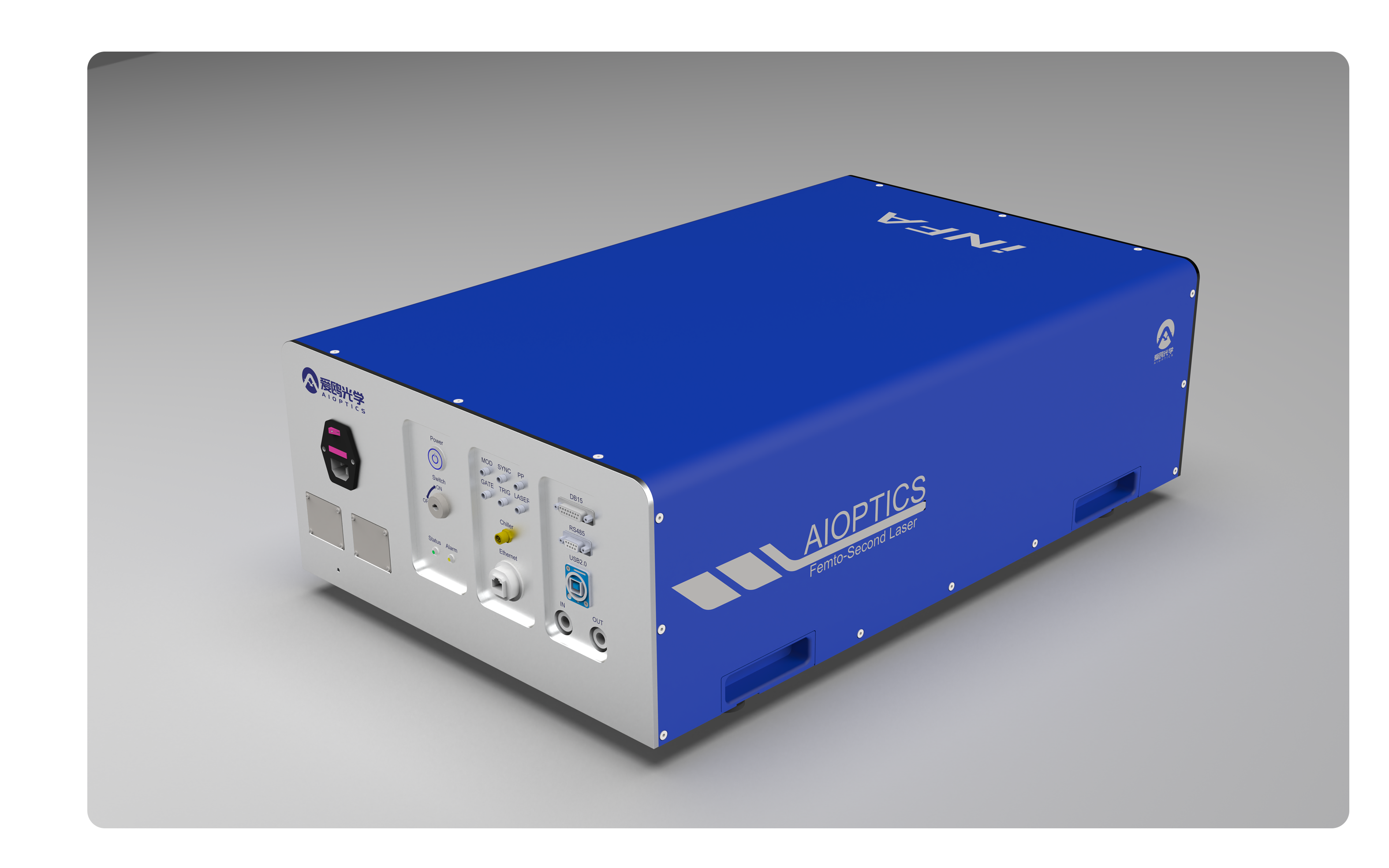

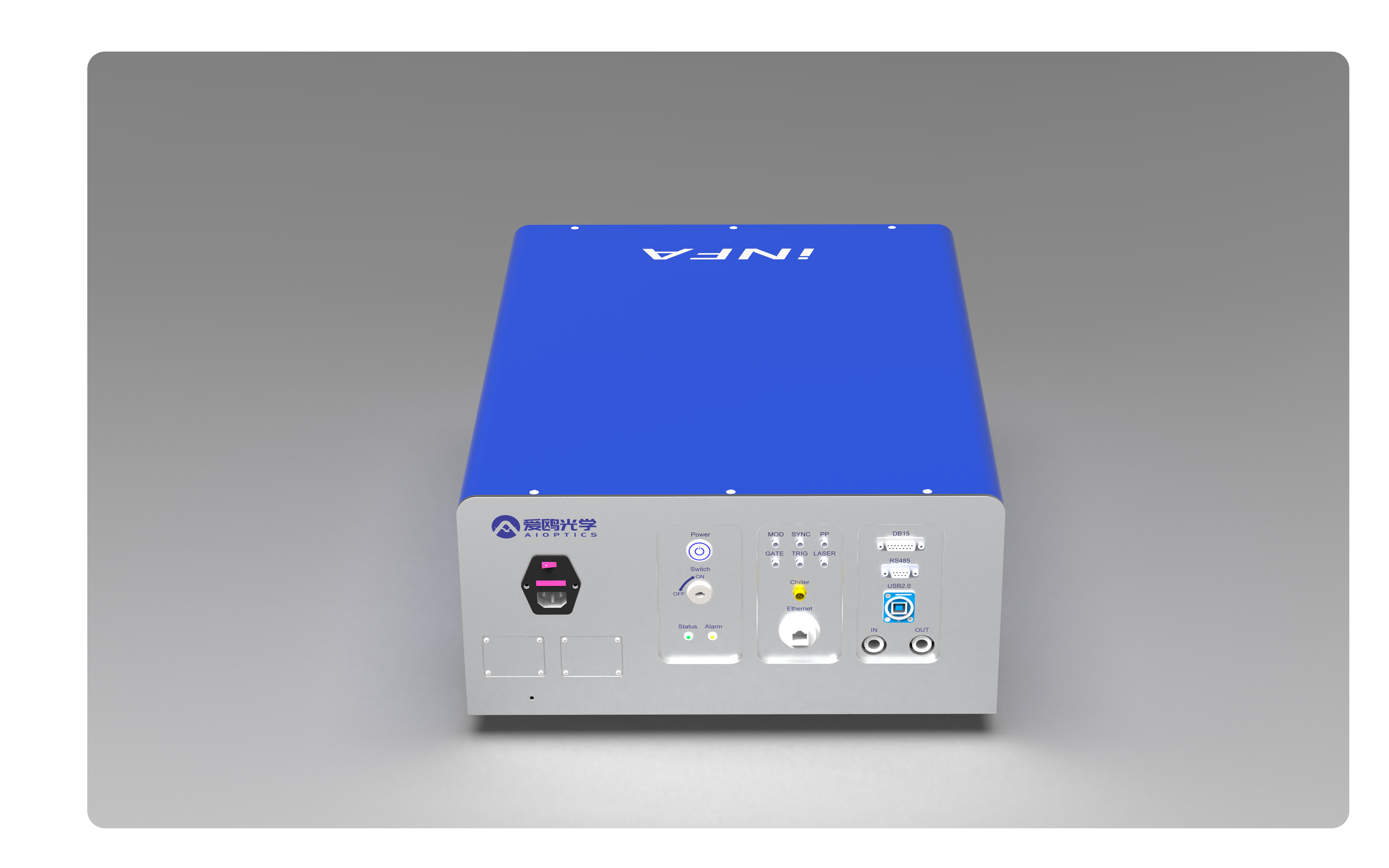

- Type: A fiber femtosecond laser with extremely high stability and reliability - Core Technology: Adopts an original intelligent active stabilization system, providing excellent stability and anti-interference capability through global intelligent recognition of femtosecond pulses and global optimal control of laser parameters - Technical Parameters: Integrates two optional output wavelengths of 1030nm and 515nm, pulse width less than 200 fs, and single-pulse energy up to 100 μJ - Application Fields: Widely used in semiconductor wafer processing, photovoltaic solar cell processing, grating writing, optical waveguide chip processing, polymer material processing and surface treatment, etc. ISL-DW 系列
SPECIFICATIONS
iNFA-1030-250-20
Center wavelength
1030+/-5nm
Average power
5~20 W
Pulse Energy
20uJ
Pulse Duration
<250 fs
Peak Power
>100 MW
Repetition Rate
1Hz~1MHz
Beam Quality
M2≤1.3
Beam Divergence
<3 mrad, 2θ
Beam Circularity
≥85%
Beam Diameter
4 ±1 mm, 1/e2
Polarization Ratio
>100:1
Polarization Direction
Horizontal
Pulse Stability
+/-5% Minimum Pulse Width @72 hours
Power Stability
<0.5% RMS @72 hours
